Piecewise Functions Review

Now, let's graph part2 ):

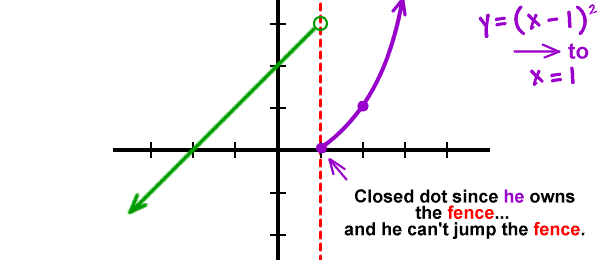

y = ( x - 1 )^2 ... shift right to x = 1 ... Closed dot since he owns the fence... and he can't jump the fence.

Done!



TRY ONE:

y = ( -3 ; x is less than or equal to -1 ... -x^2 + 4 ; x > -1 )


Let's do one with three pieces...

Graph

y = ( | x + 3 | ; x is less than or equal to -3 ... 4 ; -3 < x is less than or equal to 2 ... 5 - x ; x > 2 )

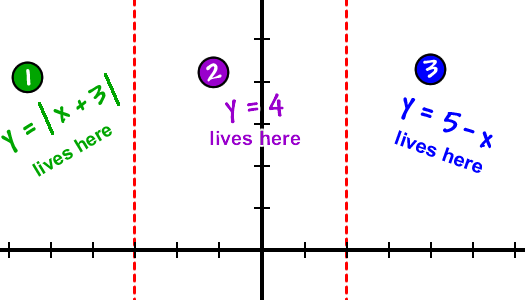

Let's put up the fencing:


y = | x + 3 | lives in the leftmost neighborhood ... y = 4 lives in the middle neighborhood ... y = 5 - x lives in the rightmost neighborhood ... the fences are vertical on x = -3 and x = 2
