Shifting, Reflection, Etc.

graph y = ( x - 1 )^3 ... the disco graph! ... shift right to x = 1 ... ( 1 - 1 )^3 = ( 0 )^3

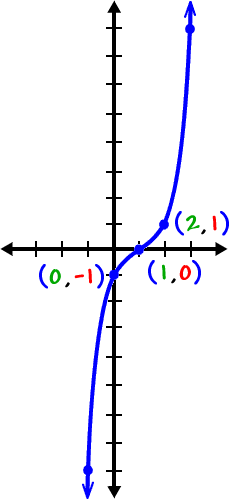

graph of y = ( x - 1 )^3 ... some points on the graph are ( 0 , -1 ) , ( 1 , 0 ) and ( 2 , 1 )



YOUR TURN:

Graph

y = -2x^3



Graph y = - sqrt( x ) ... Square Root Guy! ... up-side-down







graph of y = - sqrt( x ) ... some points on the graph are ( 1 , -1 ) and ( 4 , -2 )



Graph

    y = sqrt( x + 4 ) - 2 ... shift left four to x = -4 and down 2 ... sqrt( -4 + 4 ) = sqrt( 0 )









graph of y = sqrt( x + 4 ) - 2 ... some points on the graph are ( -4 , -2 ) and ( -3 , -1 )



TRY IT:

Graph

y = 3 sqrt( x ) - 1



Graph y = 1 / ( x - 2 ) ... it's 1/x guy! ... the shift is with the x ... shift right to x = 2 ... 1 / ( 2 - 2 ) = 1 / 0





graph of y = 1 / ( x - 2 ) ... asymptote at x = 2


This dashed line is called an asymptote.  Graphs approach, but they don't touch!



TRY IT:

Graph

y = 1 / ( x - 1 )^2
